Workshop swivel crane 01B5 Product Details

01B5 Mini Industrial Workshop Rotating Crane Mobile Lifting System

01B5 counterbalanced equipment for lifting 500 kg

01B5 mobile solution for effortless lifting of components and equipment

01B5 mobile system for lifting 500 kg mini counterbalanced crane

01B5 mini slewing crane with counterweight 500 kg

01B5 mini manual crane with electric arm, mobile lifting system

01B5 SEMI-ELECTRIC HYDRAULIC CRANE

LIFTING CAPACITY 500 KG

Максимальная грузоподъемность

500 KG

Максимальный вылет стрелы (MM)

2050 mm

Колонна

JIB ARM SWIVEL 360°

Максимальная высота (MM)

3350 mm

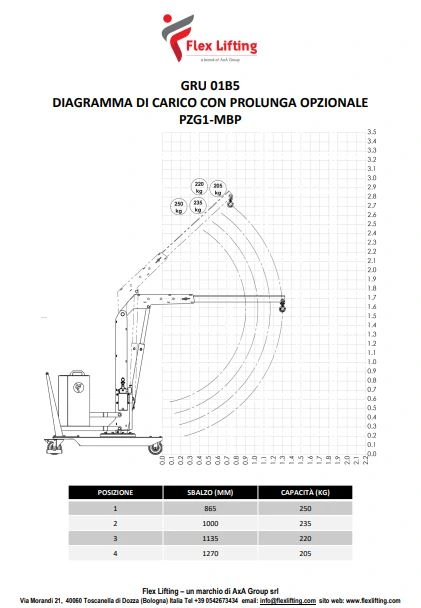

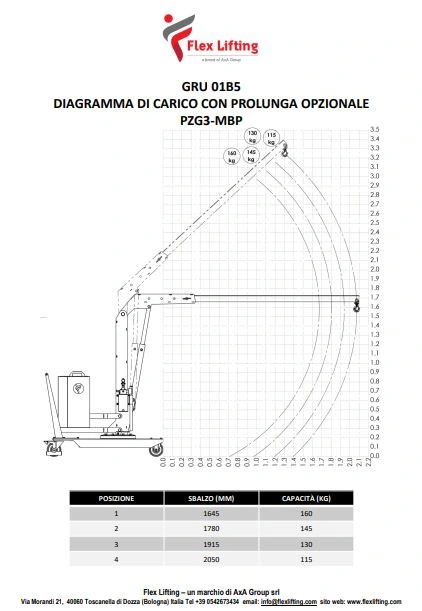

Посмотреть диаграмму нагрузки

Model 01B5 allows lifting and handling of loads of up to 500 kg. Crane rotates 360° with free rotation (lever in rest position) or can be locked every 30° (lever actuated) by means of a slewing ring at the base of the column. There are 2 handles to make rotation easy and smooth. Swivel hook with safety lock. Robust, removable push handle.

The special feature that makes the 01B5 incredibly manoeuvrable is its frontal footprint of only 980 mm. This is the smallest size on the market. Crane easily manoeuvrable thanks to 2 pivoting high capacity wheels with bumper supports and parking brakes and 2 fixed front wheels with bearings. Entire chassis made of stove-enamelled steel equipped at the base with 2 useful forklift supports (for lifting and transporting the crane over long distances in complete safety)

The raising and lowering of the arm is electrical and at a single, non-adjustable speed. They are done by operating 2 special controls on the hand control. There is also an emergency stop control on the hand control.

The hydraulic system is equipped with a block valve that prevents the load from falling in the event of accidental hose rupture and a relief valve that prevents the crane from being overloaded.

The arm is extendable in 4 positions and 3 types of optional arm extensions are available to increase the overhang to a maximum length of 2050 mm.

External battery charger. Powered by lead acid battery, this crane can be also equipped with maintenance free AGM sealed battery or Lithium battery.

Multifunction display showing charge level, battery voltage and operating hour meter.

Доступно по запросу

Узнать больше

Галерея изображений

Sprzęt do podnoszenia i transportu mini dźwigi firmy Flex Lifting

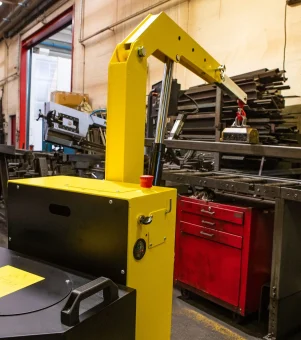

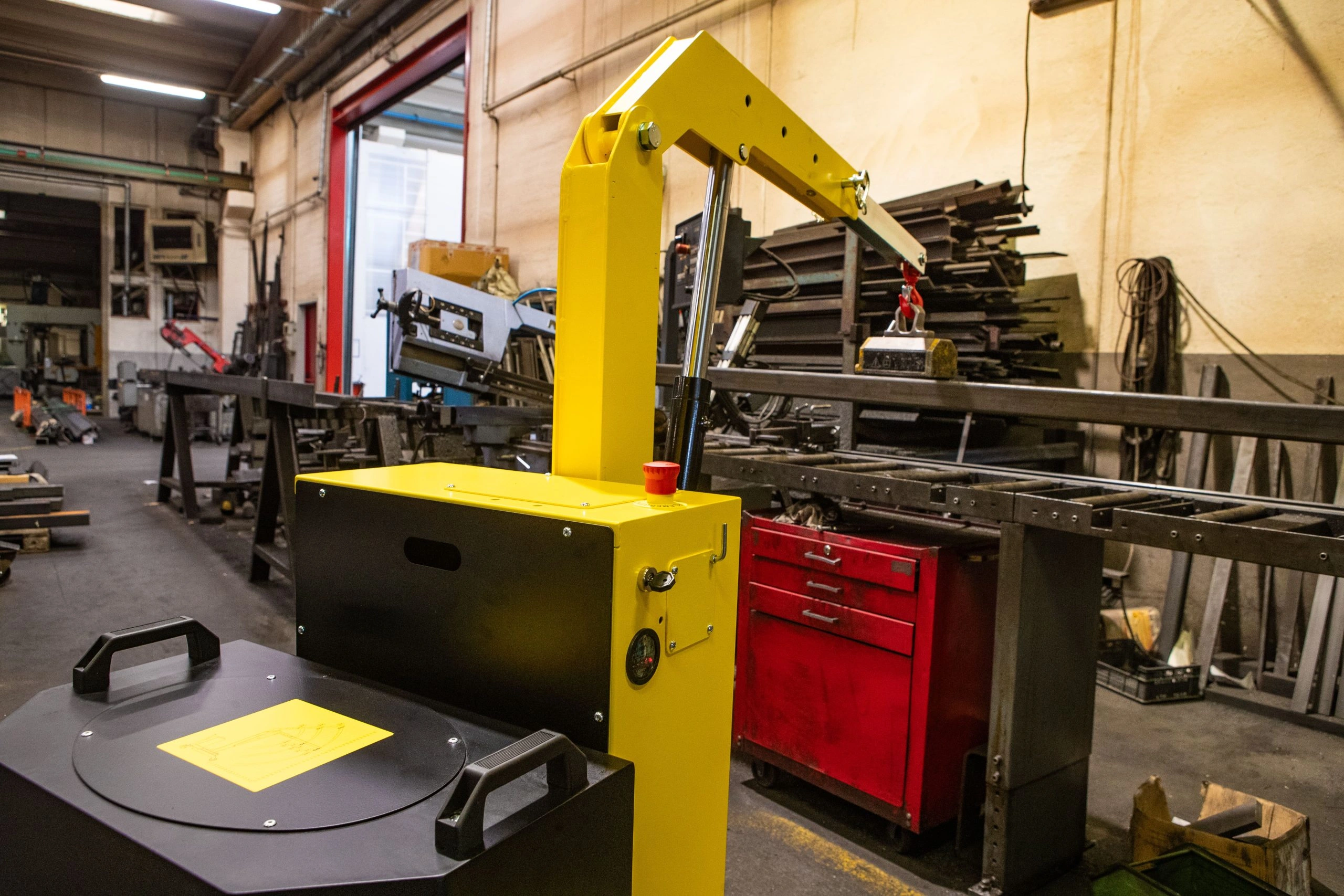

01B5 small crane tooling of cnc machining center

Тяга

Manual

Максимальная высота

3350

Колонна

Swivel 360°

Подъем

Electric at single speed

Основные характеристики

Максимальная грузоподъемность

500

Ширина спереди

980

Максимальный вылет стрелы

2050 mm

Спуск

Electric at single speed

Стрела

Manual 4 positions

ВОЗМОЖНЫЕ ОБЛАСТИ ПРИМЕНЕНИЯ И СЕГМЕНТЫ РЫНКА

GLASS PANELS

Using counterbalance cranes is an efficient and safe solution for installing glass panels, whether in building construction, renovation or architectural projects.

PLASTIC INJECTION PROCESSES

Using counterbalance cranes to change molds is a common practice in the manufacturing industry, especially in the production of plastic parts, die-cast products and other molding processes.

TESTING

Counterbalance cranes are versatile and precise tools for positioning components on test benches. They offer benefits in safety, productivity and flexibiity, making them a common choice for companies involved in product manufacturing and testing.

MAINTENANCE

Cantilever cranes are often used in the aviation industry for specific aircraft-related tasks. For handling engines, dismantling seats, raising sensitive components such as radars or antennas,etc.

TRAIN

Cantilever cranes are frequently used in the railway industry for servicing and maintaining trains. They are used for replacing components such as wheels, brakes, suspensions and engines. Cranes make it easy to lift and precisely position these components.

ASSEMBLY LINE

Using mini mobile cranes along assembly lines can improve production efficiency, reduce the risk of accidents, and enable loads to be handled precisely in spaces where other equipment can't be maneuvered. This helps optimize manufacturing operations.

PICKING

Using mini mobiles cranes to bypass ground obstacles, where traditional workshops cranes cannot access due their stabilizing legs, offers a practical and effective solution in various scenarios. They are extremely useful tools for lifting tasks in hard-to-reach spaces.

ROOFTOP

Mini mobile cranes provide the lifting power needed while being compact enough to be transported and used in a variety of situations, making them indispensable for many jobs at height.

CNC MACHINES

Using mini mobile cranes for tool changing and positioning on CNC machines improves the efficiency, safety and precision of machining operations. They have become essential equipment in many high-precision production workshops.

Benefit
Product Brochure
Data Sheet
Video

ELIMINATE MANUAL HANDLING OF LOADS AND PREVENT INJURIES

All companies need to adhere to safety regulations and this means providing suitable equipment to lift heavy loads. Cranes are usually the best type of equipment for pulling and lifting items from one place to another,especially materials that need to be placed in up high or in awkward areas.

COMPACT DIMENSIONS

One of the main benefits of mobile cranes is their level of flexibility. This is particularly important in areas that have limited space or many obstacles in the way, and since they take up a lot less room they are a favored choice for busy locations. Portable cranes can also be taken inside buildings, making them the perfect solution to indoor projects.

EASE OF USE

Thanks to their intuitive design our cranes are easy to use and do not require extensive staff training. A user friendly solution that improves efficiency and productivity at once.
